Product Summary

  • Inverter for Motor Drive

  • AC and DC Servo Drive Amplifier

  • Uninterruptible Power Supply

  • Industrial Machines, such as Welding Machines

Parametrics

Items

Symbols

Ratings

Units

Collector-Emitter Voltage

VCES

1200

V

Gate-Emitter Voltage

VGES

20

V

Collector Current

Continuous

Ic

75

A

1ms

Ic pulse

150

Continuous

-Ic

75

1ms

-Ic pulse

150

Max. Power Dissipation

Pc

600

W

Operating Temperature

Tj

+150

C

Storage Temperature

Tstg

-40 to +125

C

Net. Weight


230

g

Isolation Voltage

AC. 1min.

Visol

2500

V

Screw Torque

Mounting *1

35

kgcm

Features

Quick Detail

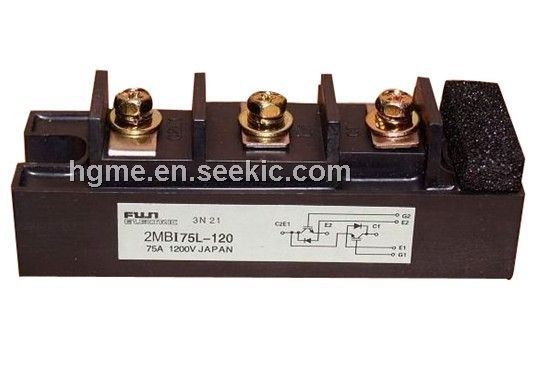

Manufacturer：Fuji Vces：1200V Ic：75A Category: IGBT Modules

Features

  • High Speed Switching

  • Low Saturation Voltage

  • Voltage Drive

Diagrams
