Product Summary

The 2SK1271 is an N-channel MOS-FET designed for high voltage switching applications.

Parametrics

2SK1271 absolute maximum ratings: (1)Drain-Source-Voltage V DS: 250 V; (2)Continous Drain Current I D: 30 A; (3)Pulsed Drain Current I D(puls): 120 A; (4)Continous Reverse Drain Current I DR: 30 A; (5)Gate-Source-Voltage V GS: ±20 V; (6)Max. Power Dissipation P D: 150 W; (7)Operating and Storage Temperature Range T ch: 150 ℃; T stg -55 to +150 ℃.

Features

2SK1271 features: (1)Low On-state resistance: 4.0Ω; (2)High Voltage rating: 1400V; (3)Low Ciss: 1800pF.

Diagrams

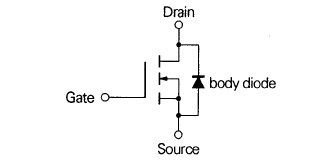

2SK1271 diagram
