Product Summary

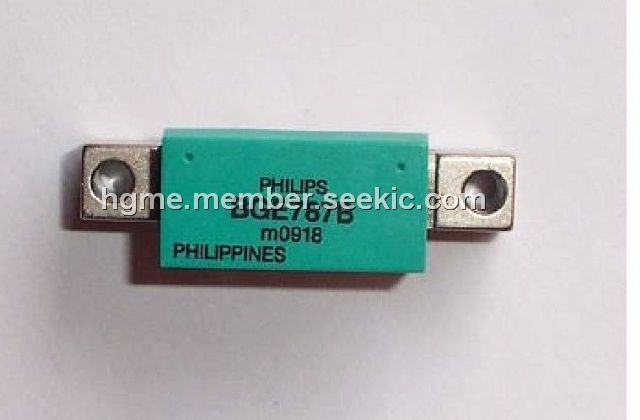

The BGE787B is a hybrid high dynamic range amplifier module operating at a supply voltage of 24 V (DC) in a SOT115J package. The module consists of two cascaded stages both in cascode configuration.
Parametrics
BGE787B absolute maximum ratings: (1)VB supply voltage: 25 V; (2)Vi RF input voltage: 55 dBmV; (3)Tstg storage temperature: -40 +100 ℃; (4)Tmb mounting base operating temperature: -20 +100 ℃.
Features
BGE787B features: (1)Excellent linearity; (2)Extremely low noise; (3)High gain; (4)Excellent return loss properties.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGE787B |
NXP Semiconductors |
RF Amplifier CATV MODULES |
Data Sheet |
Negotiable |
|
||||||||||
 |
BGE787B,112 |
NXP Semiconductors |
RF Amplifier CATV MODULES |
Data Sheet |
|
|
||||||||||
