Product Summary
The 305U250P4 is a standard recovery diode. The applications of the 305U250P4 include: Converters, Power supplies, Machine tool controls, High power drives, Medium traction applications.
Parametrics
305U250P4 absolute maximum ratings: (1)IF(AV): 300 A; (2)IF(RMS): 470 A; (3)IFSM @50Hz: 6050 A; @ 60Hz: 6335 A; (4)I2t @50Hz: 183 KA2s; @ 60Hz: 167 KA2s; (5)VRRM range: 2500 V; (6)TJ: - 40 to 180 ℃.
Features
305U250P4 features: (1)Wide current range; (2)High voltage ratings up to 2500V; (3)High surge current capabilities; (4)Stud cathode and stud anode version.

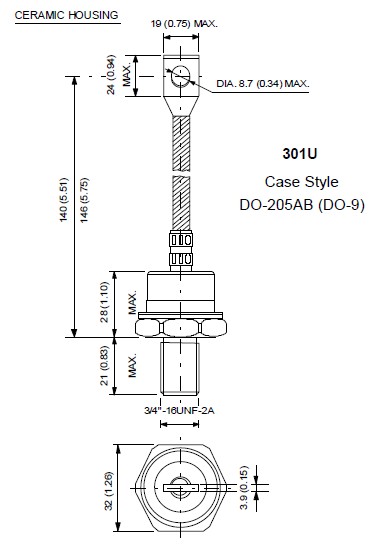

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 305U250P4 |
Other |
|
Data Sheet |
Negotiable |
|
||||
