Product Summary

The TPV595A is a NPN silicon, RF power transistor. It is designed for Class AB Push Pull, Common Emitter from 470 to 860 MHz Applications.

Parametrics

TPV595A absolute maximum ratings: (1)IC: 2 x 2.6 A; (2)VCB: 45 V; (3)PDISS: 65 W @ TC = 25 ℃; (4)TJ: -50 OC to +200 ℃; (5)TSTG: -50 OC to +200 ℃; (6)θJC: 2.5 ℃/W.

Features

TPV595A features: (1)Gold Metalization; (2)Emitter Ballast Resistors; (3)Internal Input Matching.

Diagrams

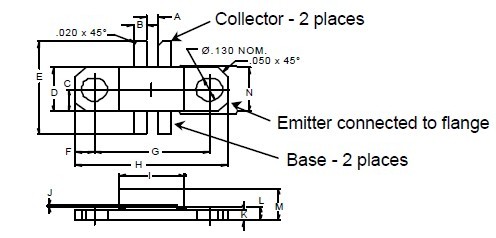

TPV595A PACKAGE STYLE

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPV595A
TPV595A
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $121.13
1-10: $111.15
10-25: $99.75
25-50: $88.35
