Product Summary

The A390D is a silicon rectifier. It is used in auction diode, DC power supplies.

Parametrics

A390D absolute maximum ratings: (1)RMS forward current IF(rms): 628A; (2)Average forward current IF(av): 400A; (3)One cycle surge current IFSM: 7000A; (4)I2t(for fusing), times≥1.0 milliseconds I2t: 8000A2sec; (5)Storage temperature Tstg: -40 to +200℃; (6)Operating temperature Tj: -40 to +200℃; (7)Mounting force: 800±10% ibs/3.56±10% KN.

Features

A390D features: (1)Soft reverse recovery; (2)High reverse blocking voltage capability; (3)Pressure contact; (4)Package reversibility; (5)Rugged glazed ceramic hermetic package.

Diagrams

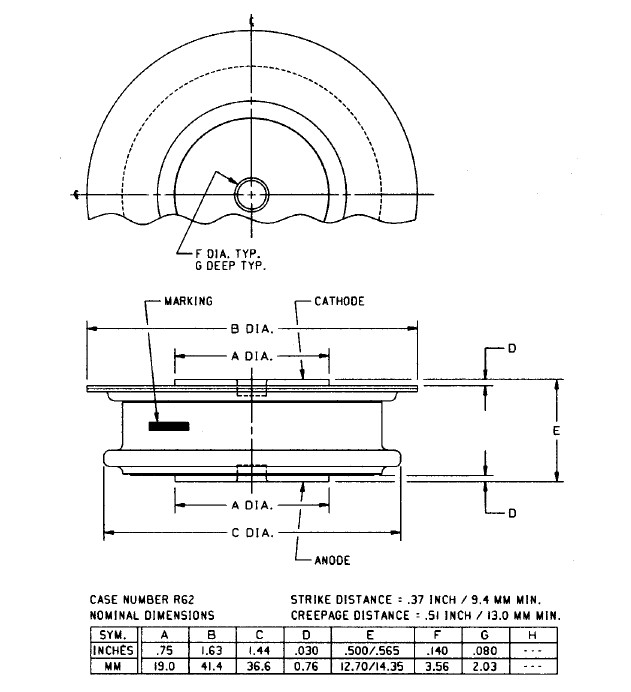

A390D dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A390D
A390D

RECTIFIER DSC 400V 400A DO200AA
Data Sheet
0-7: $37.99
