Product Summary

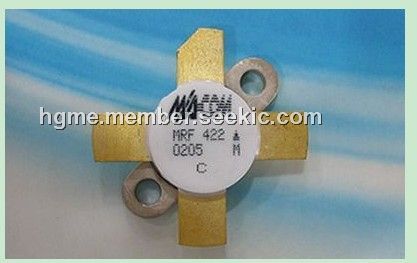

The MRF422 is a RF line NPN silicon power transistor.

Parametrics

MRF422 absolute maximum ratings: (1)Collector–Emitter Voltage, VCEO: 40 Vdc; (2)Collector–Base Voltage, VCBO: 85 Vdc; (3)Emitter–Base Voltage, VEBO: 3.0 Vdc; (4)Collector Current, Continuous, IC: 20 Adc; (5)Withstand Current, 10 s:30 Adc; (6)Total Device Dissipation, PD: 290W at TC = 25℃; 1.66W/℃; (7)Storage Temperature Range, Tstg: –65 to +150℃.

Features

MRF422 features: (1)Specified 28 Volt, 30 MHz Characteristics: Output Power = 150 W (PEP); Minimum Gain = 10 dB; Efficiency = 40%; (2)Intermodulation Distortion @ 150 W (PEP): IMD = –30 dB (Min); (3)100% Tested for Load Mismatch at all Phase Angles with 30:1 VSWR.

Diagrams

MRF422 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF422
MRF422
M/A-COM Technology Solutions
Transistors RF Bipolar Power 2-30MHz 150Watts 28Volt Gain 10dB
Data Sheet
0-1: $46.18
1-10: $44.64
10-25: $43.10
25-50: $41.56
