Product Summary

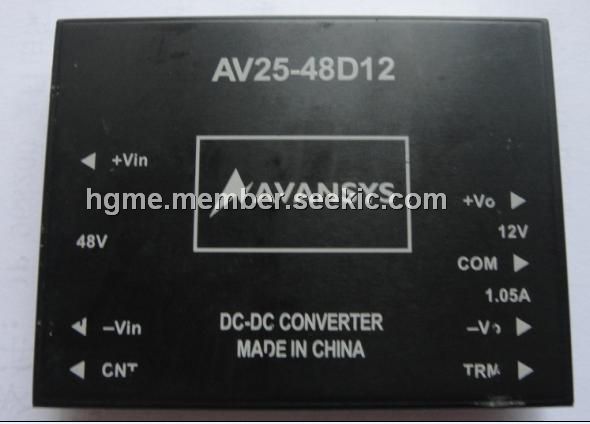

The AV25-48D12 is an Isolated and Regulated 25 WATT Modular DC/DC Converter.

Parametrics

AV25-48D12 absolute maximum ratings: (1)Oper. Temperature: -25 to +90 ℃; (2)Storage Temperature: -40 to +105 ℃ ; (3)Maximum Case Temp: 100 ℃; (4)Input Fusing: 24V: 5A, 48V: 2.5A; (5)MTBF: 2030 kHrs; (6)Input-Out Isolation: 500VDC; (7)In/Out Capacitance: 5nF; (8)Efficiency: 82%, typ; (9)Switching Frequency: 330Khz.

Features

AV25-48D12 features: (1)Wide 2 : 1 Input Range; (2)High Efficiency; (3)Regulated Outputs; (4)500V Isolation; (5)Full EMI Shielding.

Diagrams

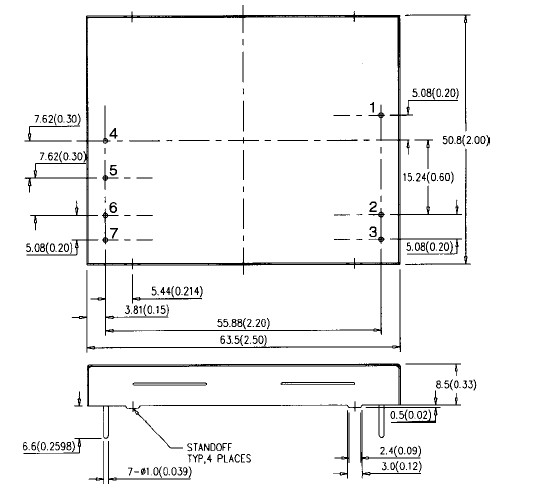

AV25-48D12 dimension
