Product Summary
The BGY785A is a hybrid high dynamic range cascode amplifier module in a SOT115J package operating with a voltage supply of 24V (DC). The applications of BGY785A are: CATV systems operating in the 40 MHz to 750 MHz frequency range.
Parametrics
BGY785A absolute maximum ratings: (1)Vi RF input voltage: 65 dBmV; (2)Tstg storage temperature: -40 +100 ℃; (3)Tmb mounting base temperature: -20 +100 ℃.
Features
BGY785A features: (1)Excellent linearity; (2)Extremely low noise; (3)Silicon nitride passivation; (4)Rugged construction; (5)Gold metallization ensures excellent reliability.

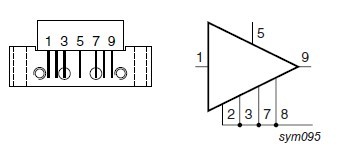

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BGY785A |
Other |
Data Sheet |
Negotiable |
|
||||||||||||
BGY785A,112 |
NXP Semiconductors |
RF Amplifier BULK CATV-MOD |
Data Sheet |
|
|
|||||||||||
BGY785AD |
Other |
Data Sheet |
Negotiable |
|
