Product Summary

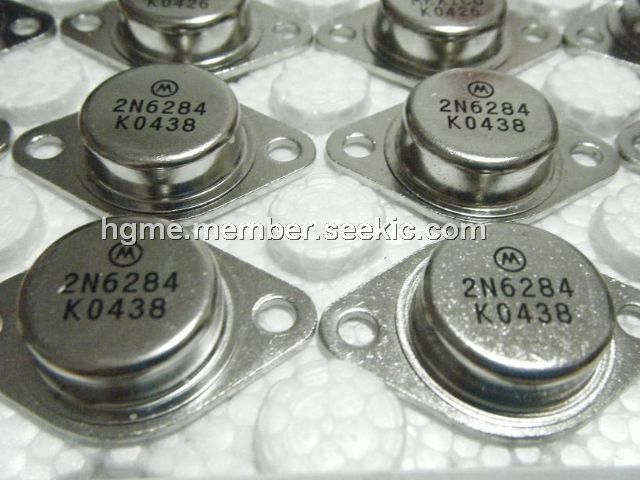

The 2N6284 is a silicon epitaxial-base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-3 metal case. The 2N6284 is inteded for general purpose amplifier and low frequency switching applications. It is used in linear and switching industrial equipment.

Parametrics

2N6284 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 100 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 100 V; (3)VEBO Emitter-Base Voltage (IC = 0): 5 V; (4)IC Collector Current: 20 A; (5)ICM Collector Peak Current: 40 A; (6)IB Base Current: 0.5 A; (7)Ptot Total Dissipation at Tc ≤ 25 ℃: 160 W; (8)Tstg Storage Temperature: -65 to 200 ℃; (9)Tj Max. Operating Junction Temperature: 200 ℃.

Features

2N6284 features: (1)Stmicroelectronics preferred salestypes; (2)Complementary pnp - NPN devices; (3)Integrated antiparallel collector-emitter diode.

Diagrams

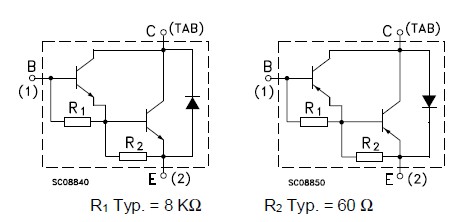

2N6284 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N6284
2N6284
STMicroelectronics
Transistors Darlington NPN Darlington Sw
Data Sheet
0-1: $2.08
1-10: $1.98
10-100: $1.77
100-250: $1.55
2N6284G
2N6284G
ON Semiconductor
Transistors Darlington 20A 100V Bipolar Power NPN
Data Sheet
0-1: $2.53
1-25: $2.07
25-100: $1.87
100-500: $1.68
