Product Summary

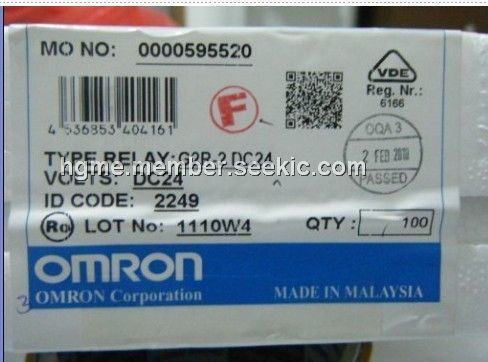

The G2R-2 DC24 is a power relay for a variety of purposes with various models.

Parametrics

G2R-2 DC24 absolute maximum ratings: (1)Contact resistance 30 mΩ max. 50 mΩ max.; (2)Set time 15 ms max.; (3)Reset time 10 ms/5ms.; (4)Insulation resistance: 1000MΩ; (5)Ambient temperature: -40℃ to 70℃; (6)Ambient humidity: 5% to 85%; (7)Weight: Approx. 17 g.

Features

G2R-2 DC24 features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO; (2)Meets VDE0700 requirements for household products according to VDE0110; (3)Clearance and creepage distance: 8 mm/8 m; (4)Models with CTI250 material available; (5)High-sensitivity (360 mW) and high-capacity (16 A) types available; (6)Double-winding latching type available; (7)Plug-in with test button and quick-connect terminals available; (8)Highly functional socket available.

Diagrams

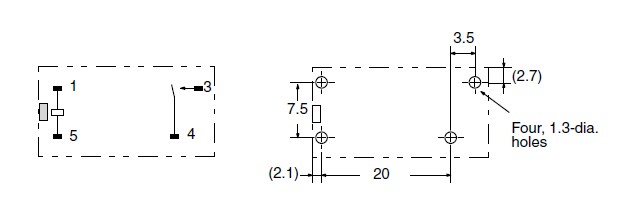

G2R-2 DC24 package diagram
