Product Summary

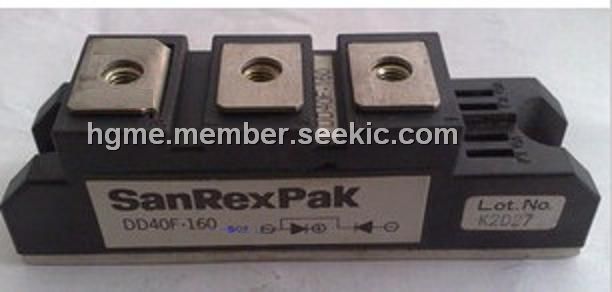

The DD40F-160 is a diode module. The power diode module DD40F-160 designed for various rectifier circuits. The DD40F-160 has two diode chips connected in series in 25mm (1inch) width package and the mounting base is elctrically isolated from elements for simple heatsink construction. Wide voltage rating up to, 1,600V is avaiable for various input voltage.

Parametrics

DD40F-160 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 400V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 480V.; (3)IF AV Single phase, half wave, 180 conduction, Tc 96: 40 A; (4)IF (RMS) R.M.S. Forward Current Single phase, half wave, 180 conduction, Tc 96: 62 A; (5)IFSM Surge Forward Current 1 2 cycle, 50/60HZ, peak Value, non-repetitive: 1200/1300 A; (6)I2t I2t Value for one cycle of surge current: 7200 A2S.

Features

DD40F-160 features: (1)Isolated mounting base; (2)Two elements in a package for simple (single and three phase) bridge connections; (3)Highly reliable glass passivated chips; (4)High surge current capability.

Diagrams

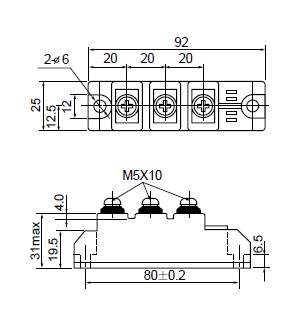

DD40F-160 package diagram
