Product Summary

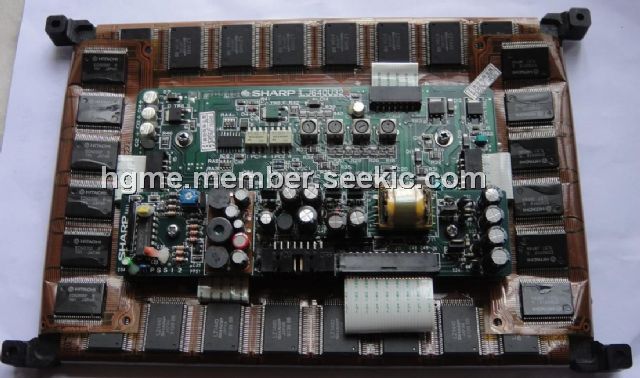

The LJ640U32 is an EL Display Module.
Parametrics
LJ640U32 absolute maximum ratings: (1)Interface signal (Logic H) VlH: 5.5 V; (2)Interface signal (Logic L) V|L: -0.5 V; (3)Supply voltage (Logic) VL: 7 V; (4)Supply voltage (Panel drive) vD: 14 V; (5)Operating temperature Topr: - 5 to +55 ℃; (6)Storage temperature Tstg: -40 to +80 ℃.
Features
LJ640U32 features: (1)Display format: 640 (W) x 400 (H) dots; (2)Dot pitch ratio: 1:1; (3)Input signal level: LS TTL level; (4)Drive method: P-P symmetric drive; (5)Structure: Baseplate; (6)Detachable DC/DC converter; (7)Net weight: Approx. 480g (540g) Including DC/DC converter.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LJ640U32 |
Other |
|
Data Sheet |
Negotiable |
|
||||
