Product Summary

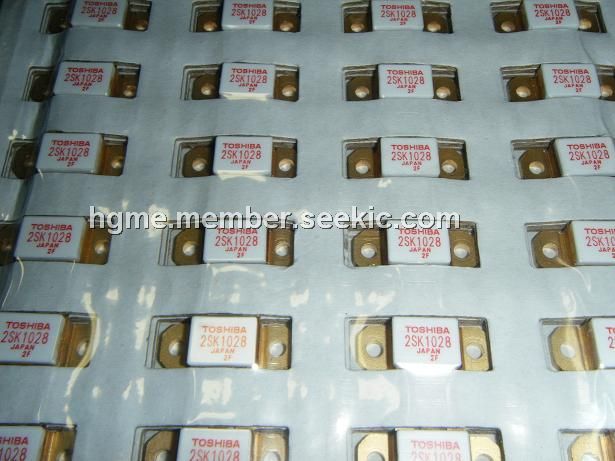

The 2SK1028 is a RF power MOS FET for VHF TV broadcast transmitter.
Parametrics
2SK1028 absolute maximum ratings: (1)Drain-source voltage VDSS: 100V; (2)Gate-source voltage VGSS: ±20V; (3)Drain current ID: 6A; (4)Reverse drain current IDR: 6A; (5)Drain power dissipation PD: 125W; (6)Channel temperature Tch: 150℃; (7)Storage temperature range Tstg: -55~150℃.
Features
2SK1028 features: (1)Output power: Po≧100W(min); (2)Drain efficiency: ηD=70%(typ); (3)Frequency: f=230MHz.

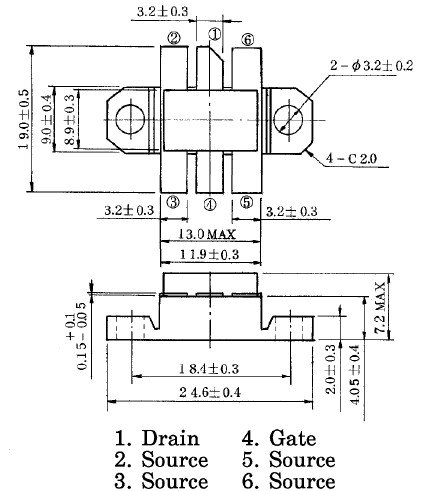

Diagrams
 |
