Product Summary

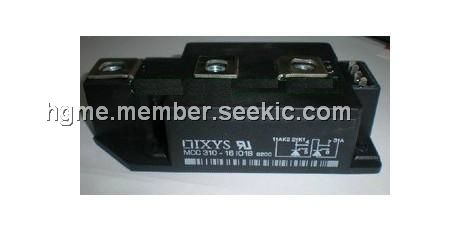

The MCC310-16IO1B is a Thyristor Module. The applications of the MCC310-16IO1B are Motor control, Power converter, Lighting control, Contactless switches, Heat and temperature control for industrial furnaces and chemical processes.
Parametrics
MCC310-16IO1B absolute maximum ratings: (1)ITRMS, IFRMS:500 A; (2)ITAVM, IFAVM:320 A; (3)PGM: 120 W or 60W; (4)PGAV:20 W; (5)VRGM:10 V; (6)TVJ:-40 to +140℃; (7)TVJM:140℃; (8)Tstg:-40 to +125℃; (9)Visol:3000V or 3600V; (10)Weight:320g; (11)(di/dt)cr:100 or 500A/us; (12)(dv/dt)cr:1000V/us.
Features
MCC310-16IO1B features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
Diagrams
