Product Summary

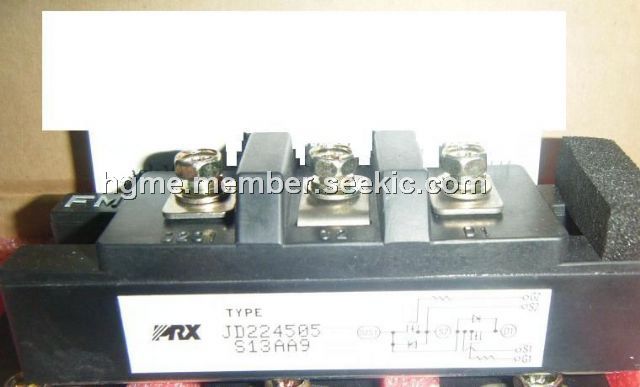

The JD224505 is a power module designed for use in applications requiring high frequency switching and low loss control. The module is isolated, consisting of two MOSFET transistos with each MOSFET having a series Schottky blocking diode and a reverse parallel connected high speed diode. The applications of the JD224505 include AC motor control, UPS inverters, switching mode power supply and PWM regulators.
Parametrics
JD224505 absolute maximum ratings: (1)junction temperature, Tj: -40 to 150℃; (2)storage temperature, Tstg: -40 to 125℃; (3)drain source voltage, VDSS: 450V; (4)gate-source voltage, VGSS: ±20V; (5)contimuous drain current, ID: 30A; (6)contimuous diode forward current, IFM: 50A; (7)pulsed drain current repetitive, IDM: 150A; (8)power dissipation, PT: 310W; (9)max mounting torque terminal screw: 17 in-lb; (10)max mounting torque mounting screws: 26 in-lb; (11)module weight: 250Grams; (12)V isolation, VRSM: 2500V.
Features
JD224505 features: (1)isolated mounting; (2)vertical DMOS chips; (3)discrete fast recovery feed-bakc diode and seris Schottky diodes; (4)low RDS(on); (5)low drive requirement; (6)internal series gate resistors; (7)fast switching.
Diagrams
