Product Summary
The MG300M1UK1 is an N channel IGBT. The applications of it include high power switching and motor control.
Parametrics
MG300M1UK1 absolute maximum ratings: (1)collector-base voltage: 1000V; (2)collector-emitter sustaining voltage:VCEX(SUS): 1000V, VCEO(SUS): 880V; (3)emitter-base voltage: 7V; (4)collector current: IC: 300A, ICP: 600A; (5)forward current: IF:300A, IFM:600A; (6)base current:40A; (7)collector power dissipation:1600W; (8)junction temperature:150℃; (9)storage temperature range:-40℃ to +125℃.
Features
MG300M1UK1 features: (1)the collector is isolated from the heat sink; (2)wide safe operating area; (3)high DC current gain:hFE=100(min.); (4)low saturation voltage:VCE(sat)=2V(max.).

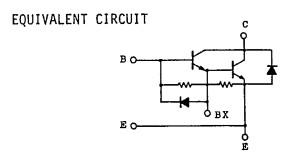

Diagrams
 |
