Product Summary

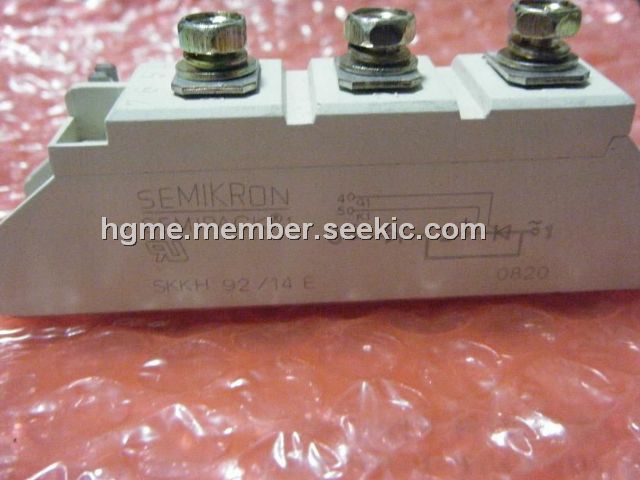

The SKKH92/14E is a Thyristor / Diode Module. The applications of the SKKH92/14E include DC motor control (e.g. for machine tools), AC motor soft starters, Temperature control (e.g. for ovens, chemical processes), Professional light dimming (studios, theaters).
Parametrics
SKKH92/14E absolute maximum ratings: (1)ITAV: 95 A at sin. 180; Tcase = 85℃; (2)ID: 70/85 A at B2/B6 Tamb = 45 ℃; P 3/180; (3)IRMS: 190/3 x 135 A at W1/W3 Tamb = 35 ℃; P 3/180 F; (4)ITSM: 2000 A at Tvj = 25 ℃; 10 ms, 1750 A at Tvj = 125 ℃; 10 ms; (5)i2t: 20000 A2s at Tvj = 25 ℃; 8,3 ... 10 ms, 15000 A2s at Tvj = 125 ℃; 8,3 ... 10 ms; (6)VT: 1.65 V max at Tvj = 25 ℃; IT = 300 A; (7)VT(TO): 0.9 V at Tvj = 125 ℃; (8)rT: 2mΩ at Tvj = 125 ℃.
Features
SKKH92/14E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.
