Product Summary

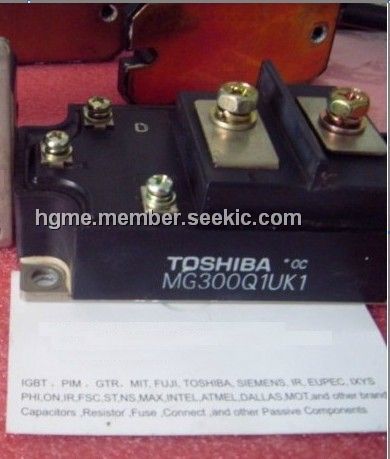

The MG300Q1UK1 is a transistor module. The MG300Q1UK1 is disigned for use in various types of motor control and other high power switching applications and consist of insulated type.
Parametrics
MG300Q1UK1 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)collector current, DC, IC: 300A; 1ms, ICP: 600A; (3)forward current, DC, IF: 300A; 1ms, IFM: 600A; (4)collector power, PC: 1600W; (5)junction temperature, Tj: 150℃; (6)storage temperature range, Tstg: -40 to 125℃.
Features
MG300Q1UK1 features: (1)Electrodes are isolated from the heat sink( 2500V AC); (2)High DC current gain; (3)Low saturation voltage(2 to 2.5V maximum); (4)Wide safe operating area.

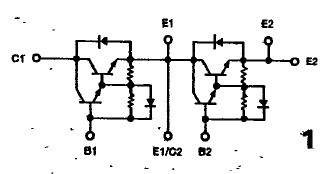

Diagrams
 |
