Product Summary

The T9G0161203DH is a powerex silicon controlled rectifier. It is designed for phase control applications. It is diffused, press-pak device employing the field-proven amplifying gate. The applications of the T9G0161203DH include power supplies, battery chargers, motor control, light dimmers, VAR generators.

Parametrics

T9G0161203DH absolute maximum ratings: (1)RMS on-state current IT(RMS): 1880A; (2)Average on-state current IT(av): 1200A; (3)Peak one-cycle surge(non-repetitive) on-state current(60Hz) ITSM: 27000A; (4)Peak one-cycle surge(non-repetitive) on-state current(50Hz) ITSM: 24650A; (5)Critical rate-of-rise of on-state current(non-repetitive) dl/dt: 300A/μs; (6)Critical rate-of-rise of on-state current(repetitive) dl/dt: 150A/μs; (7)Peak gate power dissipation PGM: 16W; (8)Average gate power dissipation PG(av): 3W; (9)Storage temperature TSTG: -40 to 150℃; (10)Operating temperature TJ: -40 to 125℃.

Features

T9G0161203DH features: (1)Low on state voltage; (2)High di/dt; (3)High dv/dt; (4)Hermetic packaging; (5)Excellent surge and I2t ratings.

Diagrams

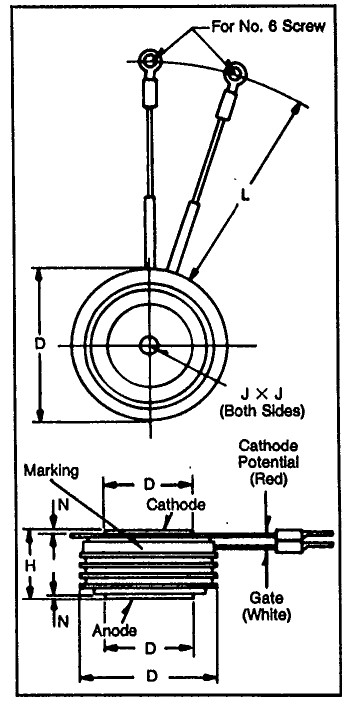

T9G0161203DH dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

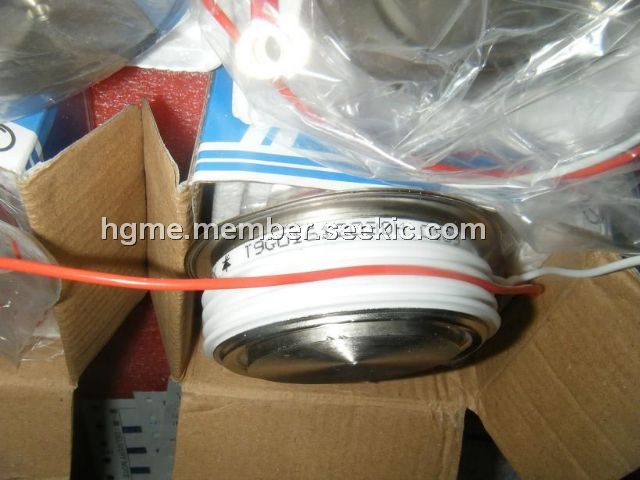

T9G0161203DH
T9G0161203DH

SCR PHASE CTRL MOD 1600V 1200A
Data Sheet
0-1: $99.53
1-10: $94.72
10-100: $89.23
100-250: $87.86
250-500: $85.80
500-1000: $82.37
