Product Summary

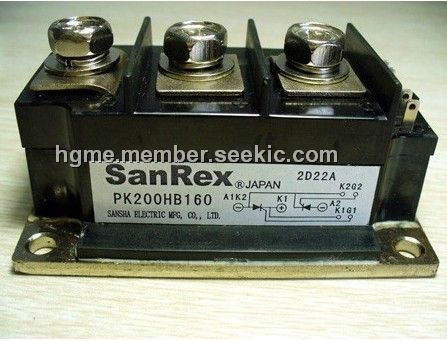

The PK200HB160 is a Power Thyristor/Diode Module designed for various rectifier circuits and power controls. Applications of the PK200HB160 are: Various rectifiers, AC/DC motor drives, Heater controls, Light dimmers, Static switches.
Parametrics
PK200HB160 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 1600 V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 1700 V; (3)VDRM Repetitive Peak Off-State Voltage: 1600 V; (4)Average On-State Current: 200A; (5) I2t: 125000A2S; (6)Peak Gate Power Dissipation: 10W; (7)Operating Junction Temperature: -40 to 125℃; (8)Storage Temperature: -40 to 125℃.
Features
PK200HB160 features: (1)IDRM Repetitive Peak Off-State Current, max: 50mA; (2)IRRM Repetitive Peak Reverse Current, max: 50mA; (3)VTM Peak On-State Voltage, max: 1.50V; (4)IGT/VGT Gate Trigger Current/Voltage, max: 100mA/3V; (5)VGD Non-Trigger Gate, Voltage. min: 0.25V; (6)dv/dt Critical Rate of Rise of Off-State Voltage, min: 500V/μS; (7)IL Lutching Current, typ: 100mA.
