Product Summary

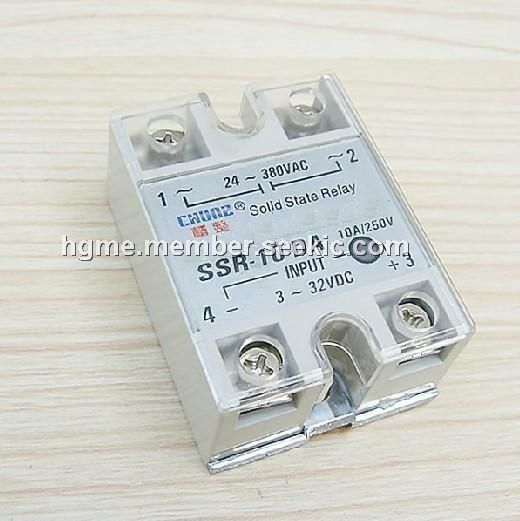

The SSR-10DA is a solid state relay.

Parametrics

SSR-10DA specifications: (1)load current: 10A; (2)operating voltage: 4 to 32VDC; (3)trigger current: 7.5mA/12VDC max; (4)control method: Zero Cross Trigger; (5)insulation resistance: Min. 50MΩ(500VDC); (6)dielectric strength: 2500VAC 50/60 Hz for 1 min ; (7)ambient humidity: 45%~85%RH; (8)ambient temperature: -20℃ to +80℃; (9)weight: Appr. 105g.

Features

SSR-10DA features: (1)Built-in operation indicator; (2)High isolation over than 50MΩ(500VDC); (3)High dielectric over than 2.5KV; (4)Low EMI / EFI & surge by zero cross trigger method; (5)Output snubber circuit protection.

Diagrams

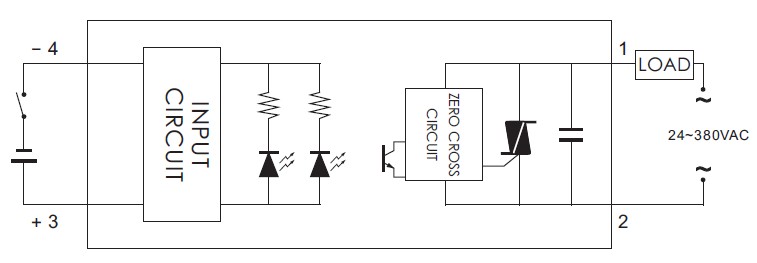

SSR-10DA diagram
