Product Summary

The T589N18TOF is a Phase Control Thyristor.

Parametrics

T589N18TOF absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages, VDRM,VRRM: 1200 V; (2)non-repetitive peak forward off-state voltage, VDSM: 1200V; (3)non-repetitive peak reverse voltage, VRSM: 1300V; (4)maximum RMS on-state current, ITRMSM: 1250A; (5)average on-state current, ITAVM: 588A; (6)surge current, ITSM: 9400A; (7)I2t-value, I2t: 442A2s; (8)critical rate of rise of on-state current, (diT/dt)cr: 200 A/μs; (9)critical rate of rise of off-state voltage, (dvD/dt)cr: 1000 V/μs.

Features

T589N18TOF features: (1)on-state voltage, vT: 2,15V; (2)threshold voltage, V(TO): 0,80 V; (3)slope resistance, rT: 0,50 mΩ; (4)gate trigger current, IGT max: 250 mA.

Diagrams

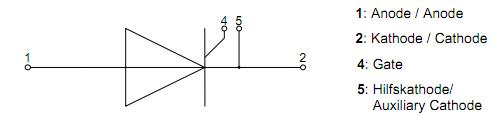

T589N18TOF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T589N18TOF
T589N18TOF

Infineon Technologies

Discrete Semiconductor Modules 1800V 1250A

Data Sheet

Negotiable
