Product Summary

The 1FK7100-5AF71-1DH0 is an extremely compact permanent-magnet synchronous motor. The available options, gear units and encoders, together with the expanded product range, mean that the 1FK7100-5AF71-1DH0 can be optimally adapted to any application. They therefore also satisfy the permanently increasing demands of state-of-the-art machine generations. The 1FK7100-5AF71-1DH0 can be combined with the SINAMICS S120 drive system to create a powerful system with high functionality. The integrated encoder systems for speed and position control can be selected depending on the application.

Parametrics

1FK7100-5AF71-1DH0 absolute maximum ratings: (1)Mech. limiting speed: 12000 RPM; (2)Operating voltage: 5 V ± 5 %; (3)Power consumption: max. 300 mA ; (4)Resolution, incremental (periods per revolution): 2048 ; (5)Absolute resolution (coded revolutions): 4096 ; (6)Incremental signals: 1 Vpp; (7)maximum permissible ambient temperature: 40 ℃.

Features

1FK7100-5AF71-1DH0 features: (1)Type of motor: Permanent-magnet synchronous motor; (2)Magnet material: Rare-earth magnetic material; (3)Insulation of the stator winding in accordance with EN 60034-1 (IEC 60034-1): Temperature class F for a winding temperature of; (4)ΔT = 100 K at an ambient temperature of +40 ℃; (5)Installation altitude (in accordance with EN 60034–1 and IEC 60034–1): ≤ 1000 m above sea level, otherwise power derating; (6)Type of construction in accordance with EN 60034-7 (IEC 60034-7): IM B5 (IM V1, IM V3); (7)Degree of protection in accordance with EN 60034-5 (IEC 60034-5):; (8)IP64; (9)Cooling: Non-ventilated; (10)Temperature monitoring: KTY 84 temperature sensor in the stator winding; (11)Drive shaft end in accordance with DIN 748-3 (IEC 60072-1): Smooth shaft (no keyway); (12)Paint finish: Unpainted; (13)2nd rating plate2) 3rd rating plate2): glued into the bearing endshield supplied loose; (14)Radial eccentricity, concentricity, and axial eccentricity in accordance with DIN 42955 (IEC 60072-1): Tolerance N (normal); (15)Vibration severity in accordance with EN 60034-14 (IEC 60034-14); (16):Grade A; vibration severity grade is adhered to up to rated speed.

Diagrams

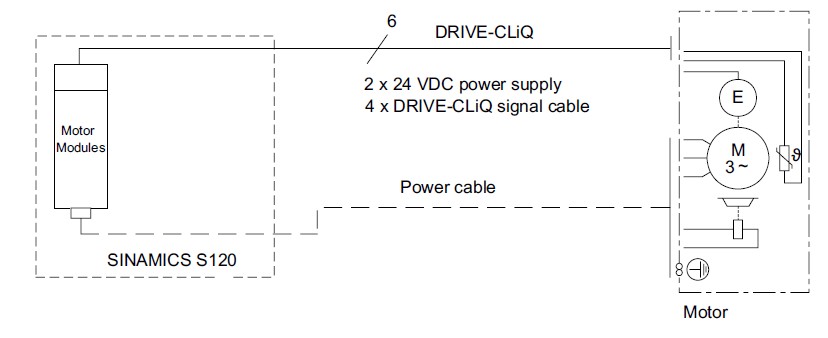

1FK7100-5AF71-1DH0 pin connection
