Product Summary

The 36MT160 is a single phase bridge power module. It is intended for use in general purpose and instrumentation applications.

Parametrics

36MT160 general specifications: (1)IO:35A, @TC:55℃; (2)IFSM: @50Hz:475A, @60Hz:500A; (3)I2t: @50Hz: 1130A2s, @60Hz:1030A2s; (4)VRRM range:100V to 1600V; (5)Tj:-55℃ to 150℃.

Features

36MT160 features: (1)Universal, 3 way terminals:push-on, wrap around or solder; (2)High thermal conductivity package, electrically insulated case; (3)Center hole fixing; (4)Excellent power/volume ratio; (5)UL E 62320 approved; (6)Nickel plated terminals solderable as per MIL-STD-202 Method 208; solder: Sn/Pb (60/40); solder temperature: 235-260℃ max. time: 8-10 secs.

Diagrams

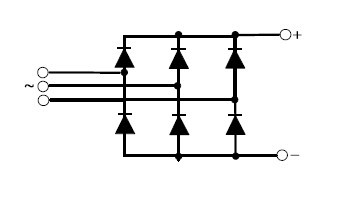

36MT160 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
36MT160
36MT160

RECT BRIDGE 3-PHA 1600V 35A D-63
Data Sheet
0-1: $12.92
1-10: $11.96
10-100: $10.18
100-250: $9.37
250-500: $8.89
500-1000: $8.40
1000-2500: $8.14
2500-5000: $7.92
5000-10000: $7.76
