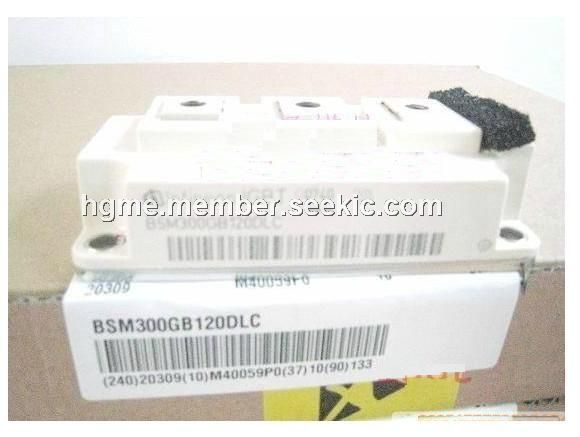

Product Summary
The BSM300GB120DLC is a 62mm C-series module with low loss IGBT2 and EmCon diode.
Parametrics
BSM300GB120DLC absolute maximum ratings: (1)collector-emitter voltage Tvj = 25℃ VCES: 1200 V; (2)DC-collector current Tc = 80℃, Tvj = 150℃ Tc = 25℃, Tvj = 150℃ Ic nom 300A; Ic 625 A; (3)repetitive peak collector current tp = 1 ms ICRM: 600 A; (4)total power dissipation Tc = 25℃, Tvj = 150℃ Ptot: 2500 W; (5)gate-emitter peak voltage VGES: +/-20 V.
Features
BSM300GB120DLC features: (1)gate threshold voltage Ic = 12,0 mA, VCE = VGE, Tvj = 25℃ VGEth 4,5 5,5 6,5 V; (2) gate charge VGE =-15 V...+15 V QG 3,20 jC; (3)internal gate resistor Tvj = 25℃ RGint 1,0 M; (4)input capacitance f = 1 MHz, Tvj = 25℃, VCE = 25 V, VGE = 0 V Cies 21,0 nF; (5)reverse transfer capacitance f = 1 MHz, Tvj = 25℃, VCE = 25 V, VGE = 0 V Cres 1,40 nF; (6)collector-emitter cut-off current VCE = 1200 V, VGE = 0 V, Tvj = 25℃ ICES 5,0 mA; (7)gate-emitter leakage current VCE = 0 V, VGE = 20 V, Tvj = 25℃ IGES 400 nA.

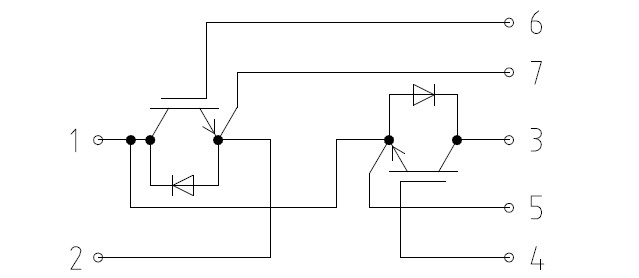

Diagrams
