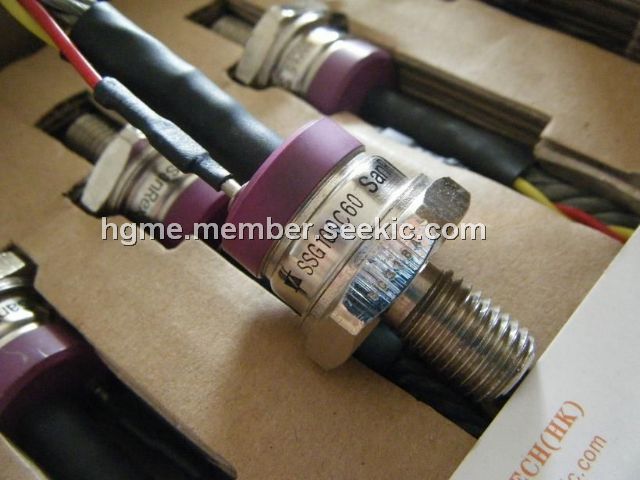

Product Summary

The SSG100C60 is a thyristor.

Parametrics

SSG100C60 absolute maximum ratings: (1)VDRM: 600V; (2)IT(RMS): 100A(Tc=83℃); (3)ITSM: 1080/1200A(50/60Hz); (4)I2t: 6000A2S(t=2~10ms); (5)PGM: 10W; (6)PG(AV): 1W; (7)VGM: 10V; (8)IGM: 3A; (9)di/dt: 50A/μs(Tj=25℃, VD=1/2VDRM, IG=0.2A); (10)Tj: 125℃; (11)Tstg: -30~125℃.

Features

SSG100C60 features: (1)On the conditions of Tj=125℃, VD=VDRM, IDRM: MAX=10mA; (2)On the conditions of Tj=25℃, ITM=140A, VTM: MAX=1.55V; (3)On the conditions of Tj=25℃, VD=6V, IT=1A, VGT: MAX=3V; (4)On the conditions of Tj=25℃, VD=6V, IGT: MAX=200mA; (5)On the conditions of Tj=25℃, VD=1/2VDRM, VGD: MIN=0.2V; (6)On the conditions of Tj=25℃, IR: TYP=70mA; (7)On the conditions of Tj=25℃, VD=12/3VDRM, dv/dt: MIN=50V/μs.

Diagrams

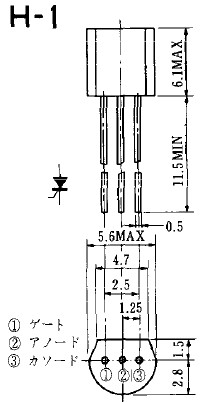

SSG100C60 diagram
