Product Summary

The CM400HU-24F is a MITSUBISHI IGBT module for General purpose inverters & Servo controls, etc.

Parametrics

CM400HU-24F absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-emitter voltage: 20V; (3)Maximum collector dissipation: 1600w; (4)Junction temperature: -40 TO 150℃; (5)Storage temperature: -40 TO 125℃; (6)Isolation voltage: 2500V.

Features

CM400HU-24F features: (1)IC: 400A; (2)VCES: 1200V; (3)Insulated Type; (4)1-elements in a pack.

Diagrams

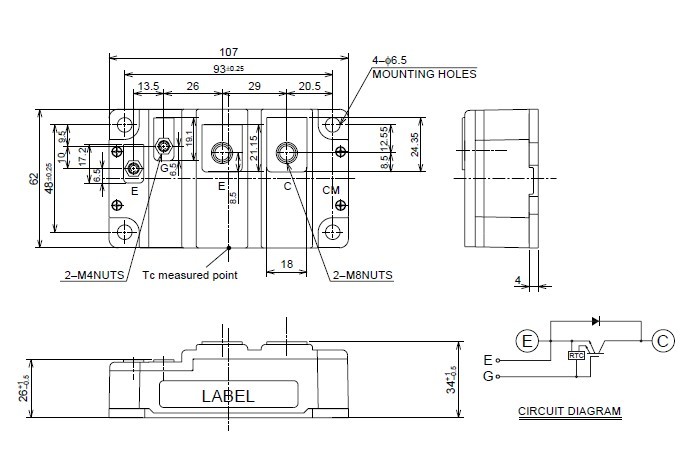

CM400HU-24F CIRCUIT DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM400HU-24F
CM400HU-24F

IGBT MOD SGL 1200V 400A F SER
Data Sheet
0-1: $109.34
1-10: $104.06
10-100: $98.03
100-250: $96.52
250-500: $94.26
500-1000: $90.49
