Product Summary
The DS1497 is a RAMified Real Time Clock.
Parametrics
DS1497 absolute maximum ratings:(1)Periodic: 122 ms to 500 ms.
Features
DS1497 features: (1)Ideal for EISA bus PCs; (2)Functionally compatible with MC146818 in 32 KHz mode; (3)Totally nonvolatile with over 10 years of operation in the absence of power; (4)Self-contained subsystem includes lithium, quartz, and support circuitry; (5)Counts seconds, minutes, hours, day of the week, date, month, and year with leap year compensation; (6)Binary or BCD representations of time, calendar, and alarm; (7)12- or 24-hour clock with AM and PM in 12-hour mode; (8)Daylight Savings Time option.

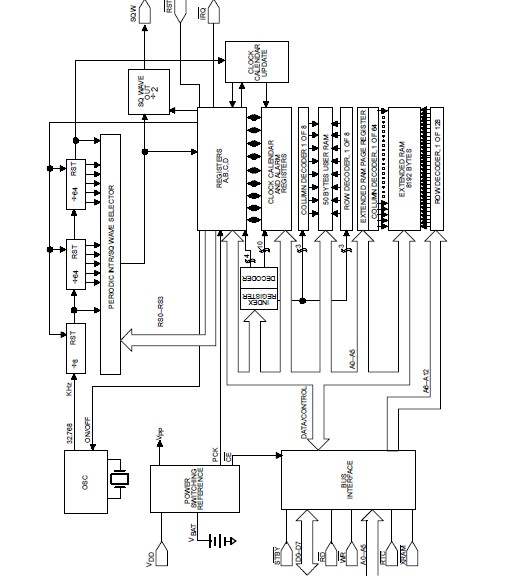

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS1497 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
