Product Summary

The FF300R17KE3 is a 62mm C-series module with trench/fieldstop IGBT3 and EmCon3 diode.

Parametrics

FF300R17KE3 absolute maximum ratings: (1)collector emitter voltage: 1700V; (2)DC-collector current: 300A; (3)repetitive peak collector current: 600A; (4)total power dissipation: 1450W; (5)gate emitter peak voltage: ±20V.

Features

FF300R17KE3 features: (1)collector emitter saturation voltage: 2.00V; (2)gate threshold voltage: 5.8V; (3)gate charge: 3.50μC; (4)internal gate resistor: 2.5Ω; (5)input capacitance: 27nF; (6)reverse transfer capacitance: 0.90nF; (7)collector emitter cut off current: 3.0-mA; (8)gate emitter leakage current: 400nA.

Diagrams

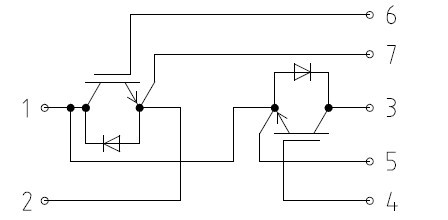

FF300R17KE3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF300R17KE3
FF300R17KE3
Infineon Technologies
IGBT Modules N-CH 1.7KV 404A
Data Sheet
0-6: $144.65
6-10: $129.82
10-25: $123.88
25-50: $118.69
