Product Summary

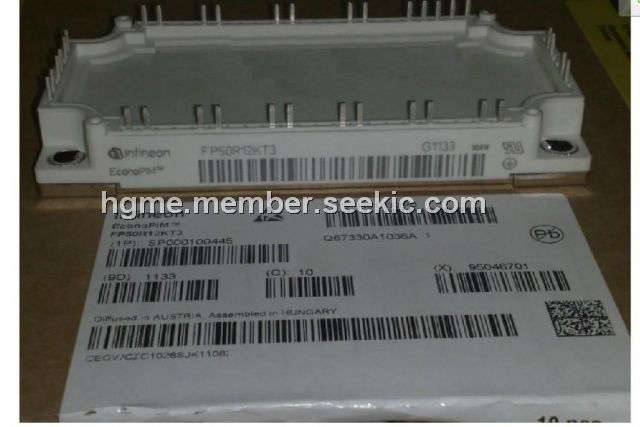

The FP50R12KT3 is an IGBT module.

Parametrics

FP50R12KT3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC nom: 50A at Tc=80℃; IC: 75A at Tc=25℃; (3)repetitive peak collector current, ICRM: 100A; (4)total power dissipation, Ptot: 280W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FP50R12KT3 features: (1)repetitive peak reverse voltage, VRRM: 1200V; (2)DC forward current, IF: 50A; (3)repetitive peak forward current, IFRM: 100A; (4)I2t-value, I2t: 690A2s.

Diagrams

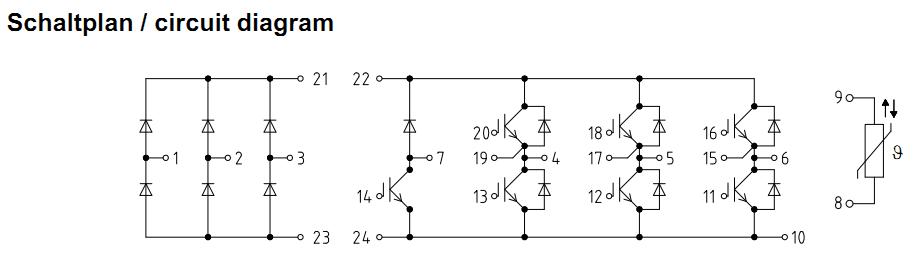

FP50R12KT3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP50R12KT3
FP50R12KT3
Infineon Technologies
IGBT Modules N-CH 1.2KV 75A
Data Sheet
0-6: $82.73
6-10: $78.38
