Product Summary

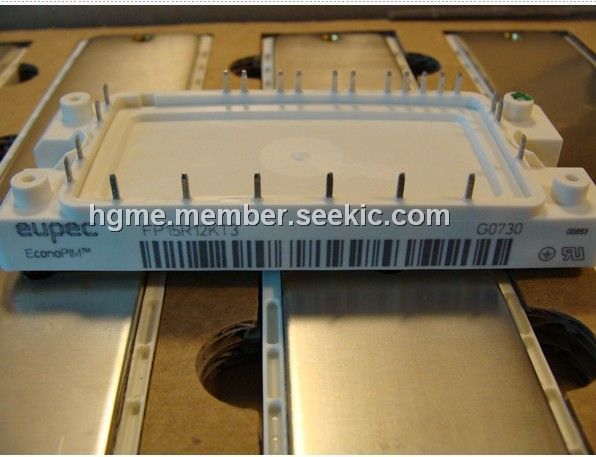

The FP15R12KT3 is an IGBT module.

Parametrics

FP15R12KT3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 25A; (3)repetitive peak collector current, ICRM: 30A; (4)total power dissipation, Ptot: 105W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FP15R12KT3 features: (1)repetitive peak reverse voltage, VRRM: 1200V; (2)DC forward current, IF: 15A; (3)repetitive peak forward current, IFRM: 30A; (4)I2t value, I2t: 60.0A2s.

Diagrams

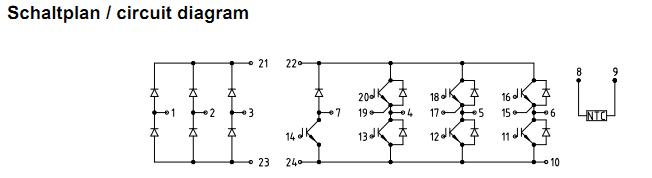

FP15R12KT3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP15R12KT3
FP15R12KT3
Infineon Technologies
IGBT Modules PIM Econo2B 1200V, 15A
Data Sheet
0-1: $43.76
