Product Summary

The FWP-80B is a high-speed fuse for the protection of semiconductor. The design and construction of the FWP-80B have been optimized to provide excellent performance, making it the ideal solution for medium power applications. Applications of the FWP-80B are: DC common bus, DC drives, Power converters/rectifiers, Reduced voltage starters.

Parametrics

FWP-80B maximum ratings: (1)Volts: 150Vac; (2)Amps: 70-1000A; (3)IR: 100kA Sym. (70-400A); 200kA Sym. (450-1000A); 20kA @150Vdc (70-800A); 100kA @ 80Vdc (70-400A).

Features

FWP-80B features: (1)Low Energy Let-Through; (2)Low Watts Loss; (3)Superior Cycling Capability; (4)Low Arc Voltage; (5)Trip Indicator on Some Models.

Diagrams

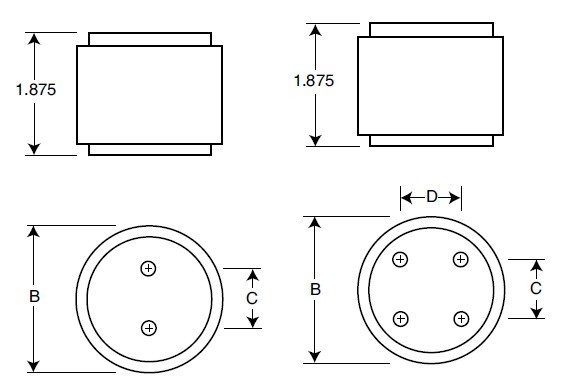

FWP-80B dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FWP-80B
FWP-80B
Cooper Bussmann
Fuses 700V 80Arms Semiconductor
Data Sheet
0-1: $60.48
1-25: $58.52
25-50: $55.82
50-100: $51.84
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FWP-1000
FWP-1000
Cooper Bussmann
Fuses SEMI CONDUCTOR FUSE
Data Sheet
0-1: $920.36
FWP-1000A
FWP-1000A
Cooper Bussmann
Fuses 1000A 700V AC
Data Sheet
0-1: $475.66
1-10: $467.86
FWP-100A22F
FWP-100A22F
Cooper Bussmann
Fuses 660V 100Arms Semiconductor
Data Sheet
0-6: $51.76
6-25: $51.73
25-50: $51.71
50-100: $51.70
FWP-100A22FI
FWP-100A22FI
Cooper Bussmann
Fuses 100A 700V 22X58 INDICATED
Data Sheet
0-6: $54.36
6-10: $51.26
FWP-100B
FWP-100B
Cooper Bussmann
Fuses 700V 100Arms Semiconductor
Data Sheet
0-6: $60.48
6-25: $58.52
25-50: $55.82
50-100: $51.84
FWP-10A14F
FWP-10A14F
Cooper Bussmann
Fuses 660V 10Arms Semiconductor
Data Sheet
0-1: $18.52
1-25: $18.28
25-50: $16.51
50-100: $15.41
