Product Summary

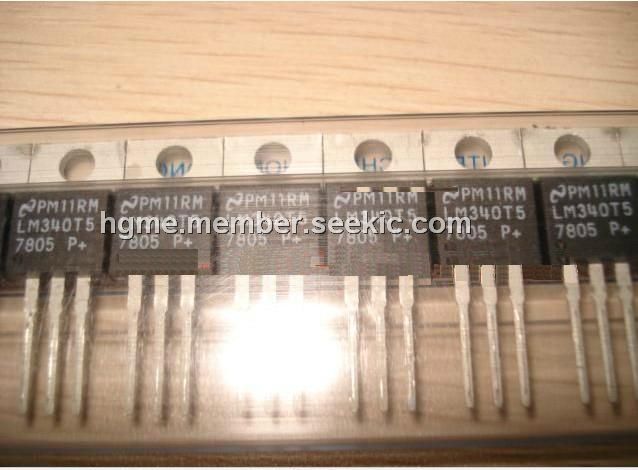

The LM340T5 is a 3-Terminal Positive Regulator. The LM340T5 is intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, the LM340T5 can be used with external components to obtain adjustable output voltages and currents.

Parametrics

LM340T5 absolute maximum ratings: (1)DC Input Voltage:35V; (2)Internal Power Dissipation:Internally Limited; (3)Maximum Junction Temperature:150℃; (4)Storage Temperature Range:-65℃ to +150℃; (5)Lead Temperature (Soldering, 10 sec.):230℃; (6)ESD Susceptibility:2 kV.

Features

LM340T5 features: (1)Complete specifications at 1A load; (2)Output voltage tolerances of ±2% at Tj= 25℃ and ±4%; (3)Internal thermal overload protection; (4)Internal short-circuit current limit; (5)Output transistor safe area protection; (6)P+ Product Enhancement tested.

Diagrams

LM340T5 pin configuration
