Product Summary

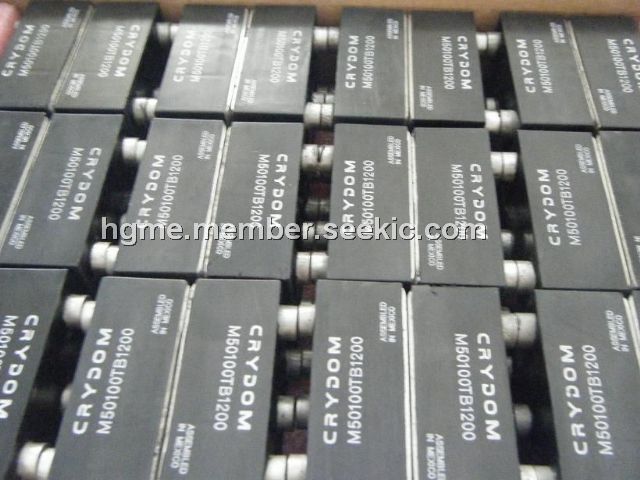

The M50100TB1200 is a High Surge Current Rectifier.

Parametrics

M50100TB1200 absolute maximum ratings: (1)Maximum DC Output Current (Tc = 85℃): 100 A; (2)Maximum Voltage Drop @ Amps Peak: 1.2V @ 100 A; (3)Operating Junction Temperature Range: -40 to 125℃; (4)Repetitive Peak Reverse Voltage (AC Line Nominal): 800 Vpk (280 VAC), 1200 Vpk (480 VAC), 1400 Vpk (530 VAC), 1600 Vpk (600 VAC); (5)Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz): 1500 A; (6)Maximum I2T for Fusing (t=8.3ms): 9350 A2sec; (7)Maximum Thermal Resistance, Junction to Ceramic Base per Chip: 0.3℃/W; (8)Isolation Voltage: 2500 Vrms.

Features

M50100TB1200 features: (1)High Surge Current Rectifier Circuits; (2)5 Different Circuits to Choose from; (3)Up to 1600 Volt Blocking Standard.

Diagrams

M50100TB1200 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M50100TB1200
M50100TB1200
Crydom
Discrete Semiconductor Modules DIODE MODULE 480VAC 100ADC 1200VP
Data Sheet
0-1: $58.67
1-10: $55.91
10-25: $54.63
25-50: $53.34
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M50100SB1200
M50100SB1200
Crydom
Discrete Semiconductor Modules DIODE MODULE 480VAC 100ADC 1200VP
Data Sheet
0-1: $48.49
1-10: $46.21
10-25: $45.15
25-50: $44.09
M5010072
M5010072
Crydom
Discrete Semiconductor Modules 100A 600V SCR CNTR CC ,MODULE POWER
Data Sheet
0-1: $86.00
1-10: $79.09
10-25: $75.55
25-50: $71.28
M5010085
M5010085
Crydom
Discrete Semiconductor Modules 100Amps 8 Circuit 480VAC Power Module
Data Sheet
0-3: $111.08
3-10: $102.14
10-25: $97.57
25-50: $92.07
M5010045
M5010045
Crydom
Discrete Semiconductor Modules 100A 1200V AC SW MODULE POWER
Data Sheet
0-3: $111.09
3-10: $102.16
10-25: $97.58
25-50: $92.08
M5010055
M5010055
Crydom
Discrete Semiconductor Modules 100A 1200V SCR DBLR MODULE POWER
Data Sheet
0-3: $116.12
3-10: $106.78
10-25: $101.99
25-50: $96.25
M50100DD600
M50100DD600
Crydom
Discrete Semiconductor Modules Power Modules,60-100 Amp Diode Module
Data Sheet
Negotiable
