Product Summary

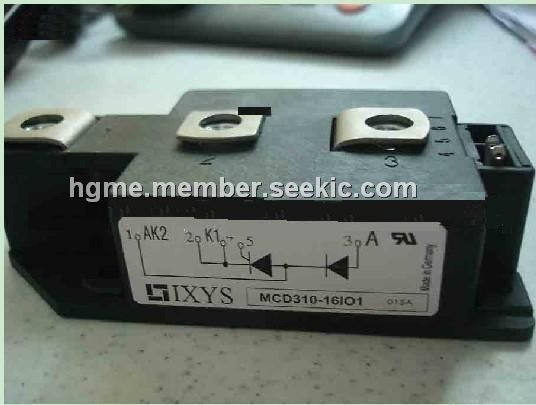

The MCD310-16IO1 is a Thyristor Module. The applications of it are Motor control, Power converter, Lighting control, Contactless switches, Heat and temperature control for industrial furnaces and chemical processes.
Parametrics
MCD310-16IO1 absolute maximum ratings: (1)ITRMS, IFRMS: 500 A; (2)ITAVM, IFAVM: 320 A; (3)PGM: 120 W or 60W; (4)PGAV: 20 W; (5)VRGM: 10 V; (6)TVJ: -40 to +140℃; (7)TVJM: 140℃; (8)Tstg: -40 to +125℃; (9)Visol: 3000V or 3600V; (10)Weight: 320g; (11)(di/dt)cr: 100 or 500A/us; (12)(dv/dt)cr: 1000V/us.
Features
MCD310-16IO1 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCD310-16io1 |
Ixys |
Discrete Semiconductor Modules 310 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MCD310 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MCD310-08io1 |
Ixys |
Discrete Semiconductor Modules 310 Amps 800V |
Data Sheet |
Negotiable |
|
||||
|
MCD310-12io1 |
Ixys |
Discrete Semiconductor Modules 310 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
|
MCD310-14io1 |
Ixys |
Discrete Semiconductor Modules 310 Amps 1400V |
Data Sheet |
Negotiable |
|
||||
|
MCD310-16io1 |
Ixys |
Discrete Semiconductor Modules 310 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
|
MCD310-18io1 |
Ixys |
Discrete Semiconductor Modules 310 Amps 1800V |
Data Sheet |
Negotiable |
|
||||
