Power Thyristor/Diode Module PK130FG160 is designed for various rectifier circuits and power controls. For your circuit application, following internal connections and wide voltage ratings up to 1600V are available and electrically isolated mounting base make your mechanical design easy. The applications of the PK130FG160 are Various rectifiers, AC/DC motor drives, Heater controls, Light dimmers, Static switches.
Parametrics
PK130FG160 absolute maximum ratings: (1)repetitive peak reverse voltage:1600V; (2)non-repetitive reverse voltage:1700V; (3)repetitive peak off-state voltage:1600V; (4)average on-state current: 130A; (5)RMS on-state current: 205A; (6)Peak Gate Power Dissipation:10W; (7)Average Gate Power Dissipation:1W; (8)Peak Gate Current:3A; (9)Peak Gate Voltage (Forward):10V; (10)Peak Gate Voltage (Reverse):5V; (11)Critical Rate of Rise of On-State Current:100A/us; (12)solation Breakdown Voltage (R.M.S.):2500V; (13)operating junction temperature:-40 to +125℃; (14)storage temperature:-40 to +125℃.
Features
PK130FG160 features: (1)IT(AV) 130A, IT(RMS) 205A, ITSM 3500A; (2)di/dt 100A/ μs; (3)dv/dt 1000V/ μs.

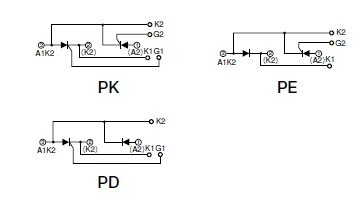

Diagrams
