Product Summary

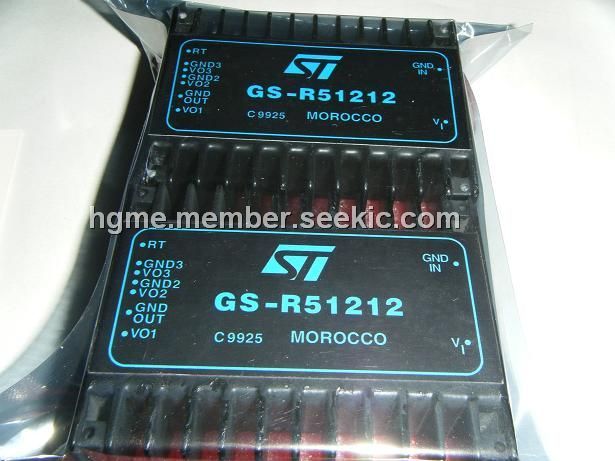

The GS-R51212 is a versatile triple output, high current step-down switching regulator that provides +5.1V/4.5A output voltage and an isolated ±12V/0.35A or ±15V/0.3A dual output voltage. The GS-R51212 is ideal for microprocessor based boards because power the logic and the communication ports and have Reset output and Power Fail programmable input for the correct system start-up.
Parametrics
GS-R51212 absolute maximum ratings: (1)Vi DC Input Voltage: 44 V; (2)Irs Reset Output Sink Current: 20 mA.
Features
GS-R51212 features: (1)5.1V/4.5A and ±12V/0.35A or ±15V/0.3A output voltages; (2)±12 or ±15V externally adjustable; (3)High efficiency (81% typ.); (4)Short-circuit protection; (5)Reset output; (6)Power Fail programmable input; (7)Inhibit/Enable control input; (8)Soft-start; (9)PCB or chassis mounting.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 GS-R51212 |
STMicroelectronics |
Switching Converters, Regulators & Controllers +5.1/+12/-12V Stp-Dn |
Data Sheet |
Negotiable |
|
||||
|
GS-R51212S |
STMicroelectronics |
Switching Converters, Regulators & Controllers +5.1/+12/-12V Stp-Dn |
Data Sheet |
Negotiable |
|
||||
