Product Summary
The SBX1602A is serial interface/transmission encorder. The SBX1602A is designed as a hybrid IC that receives serial data of the SMPTET 14,224 encoded by the SBX1601A and decodes into parallel data.
Parametrics
SBX1602A absolute maximum ratings: (1)supply voltage: 6V; (2)input voltage: Vee to 0V; (3)output current: -30mA; (4)operating temperature range: 0℃ to 65℃; (5)storage temperature range: -50℃ to 125℃; (6)allowable power dissipation: 2W.
Features
SBX1602A features: (1)Automatic cable equalizer (maximum gain: 30dB at 135MHz);(2)PLL for serial clock generation;(3)Reclocked repeater output (active loop through);(4)Descrambler: modula-2 multiplication by G(X)=(x^9+x^4+1)(x+1);(5)Serial to parallel conversion;(6)SYNC monitor output;(7)Eye pattern monitoring;(8)Input signal detector;

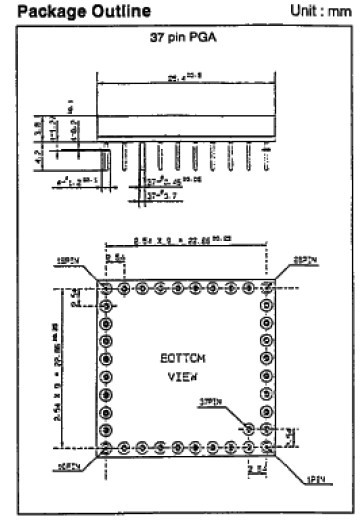

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SBX1602A |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SBX1602A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SBX1601A |
Other |
|
Data Sheet |
Negotiable |
|
||||
