Product Summary

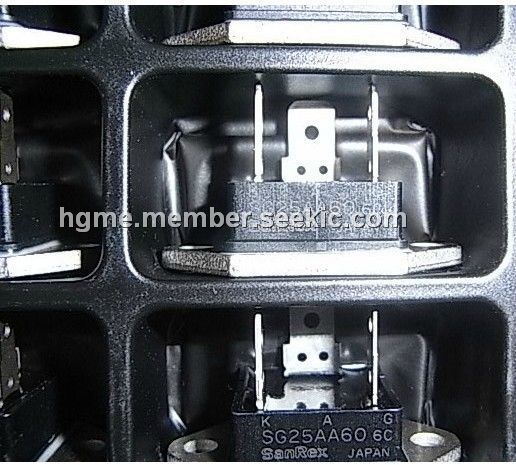

The SG25AA60 is a gate turn-off thyristor.
Parametrics
SG25AA60 absolute maximum ratings: (1)Repetitve peak off-state, VDRM: 2500V; (2)Repetitve peak reverse voltage, VRRM: 16V; (3)Peak turn-off current, ITGDM: 2500A; (4)RMS on-state current, IT: 1050A; (6)peak one cycle surge on-state current, ITSM: 14000A; (7)Critical rate of rise of on-stste, DI/DT: 300A/μs; (8)peak forward gate current, IFGM: 70A; (9)Average gate power dissipation, PG: 14W; (10)RMS gate current, IG: 42A; (11)Operating junction temperature, TJ: -40 to +125℃; (12)Storage temperature range, TSTG: -40 to +150℃.
Features
SG25AA60 features: (1)Repetitive Peak Off-State Voltage, VDRM=2500V; (2)RMS on-state current: IT=1050A; (3)Peak turn-off Current: IRGQM=2500A; (4)Critical Rate of Rise of On-State Current: di/dt=300A/μs; (5)Critical Rate of Rise of Off-State Voltage: dv/dt=1000V/μs.

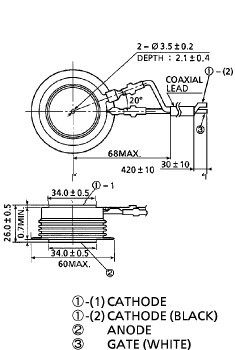

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SG25AA60 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
