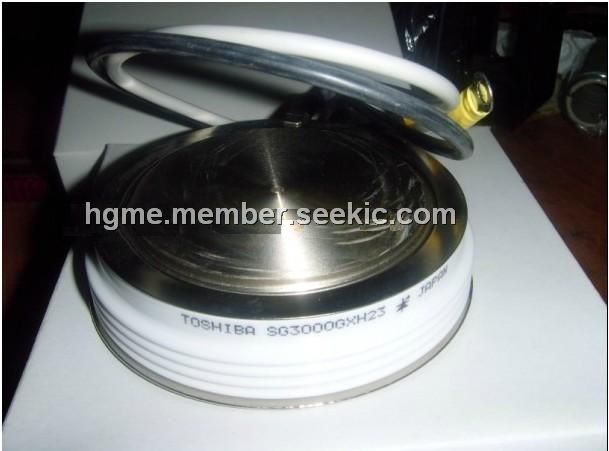

The SG3000GXH23 is a Toshiba gate turn off thyristor.
Parametrics
SG3000GXH23 absolute maximum ratings: (1)Repetitive peak off state voltage: 4500V; (2)Repetitive peak reverse volatge: 17V; (3)Peak turn off current: 3000A; (4)RMS On state current: 1200A; (5)Peak Forward gate current: 100A; (6)Average forward gate power dissipation: 50W; (7)RMS gate current: 42A; (8)Operating Junction temperature: -40 to 125℃; (9)Storage temperature range: -40 to 150℃; (10)Mounting force: 28.5 to 44kN.
Features
SG3000GXH23 features: (1)Repetitive peak off state voltage: 4500V; (2)RMS On state current: 1200A; (3)Peak turn off current: 3000A; (4)Critical rate of rise On state current: 400A/μs; (5)Critical rate of rise Off state current: 1000A/μs; (6)Suitable for 3000V DC Off state volatge applications.
