Product Summary

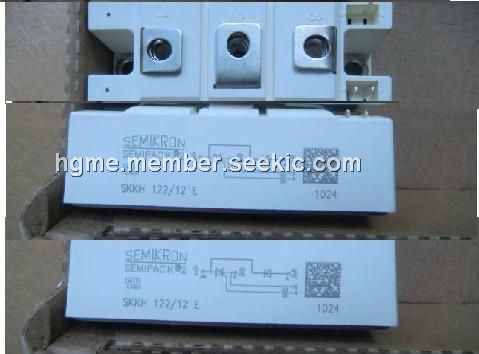

The SKKH122/12E is a thyristor / diode module.
Parametrics
SKKH122/12E absolute maximum ratings: (1)ITAV: 129 (92) A at Tc=85 (100)℃; (2)ID: 82/105 A at Ta=45℃, 170/200 A at Ta=35℃; (3)IRMS: 235/3*160 A; (4)ITSM: 3600 A at Tvj=25, 3200 A at Tvj=125℃; (5)i2t: 64800 A2s at Tvj=25℃, 51200 A2s at Tvj=125℃; (6)VT: 1.55 V max at Tvj=25℃, IT=500 A; (7)VT(TO): 0.85 V max at Tvj=125℃; (8)rT: 2 mΩ max at Tvj=125℃; (9)IDD; IRD: 40 mA max at Tvj=125℃, VRD=VRRM.
Features
SKKH122/12E features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.

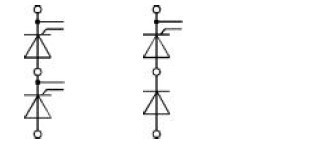

Diagrams
 |
