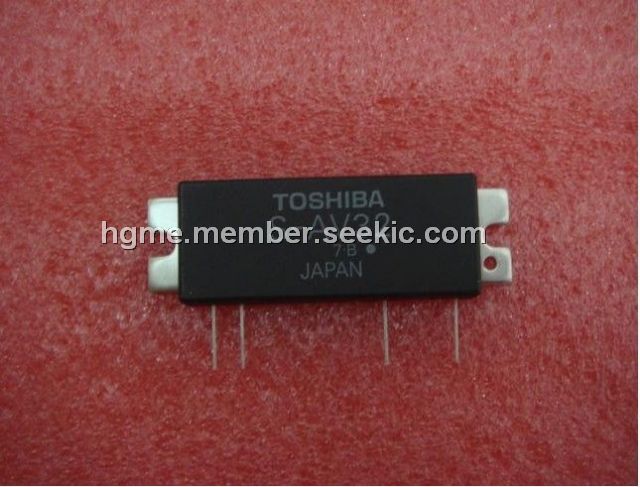

The S-AV32 is a FM RF power amplifier module for VHF band.
Parametrics
S-AV32 absolute maximum ratings: (1)DC Supply Voltage, VDD: 16.5 V at VGG =0V, Pi =0mW; (2)DC Supply Voltage, VDD: 16.5 V at VGG≦5V, Pi =50mW, Po≦60W; (3)DC Supply Voltage, VGG: 5.5 V at VDD≦12.5V, Pi =50mW; (4)Total Current, IT: 15 A at VDD≦12.5V, Pi =50mW; (5)Input Power, Pi: 100 mW at VDD≦12.5V, VGG≦5V; (6)Output Power, Po: 80 W at 12.5V< VDD≦16.5V, VGG≦5V, Pi =50mW; (7)Operating Case Temperature Range, Tc(opr): -30 to 100℃ at VGG≦5V; (8)Storage Temperature Range, Tstg: -40 to 110℃.
Features
S-AV32 features: (1)Output Power: 60W (Min.); (2)Power Gain: 30.7dB (Min.); (3)Total Efficiency: 45% (Min.).

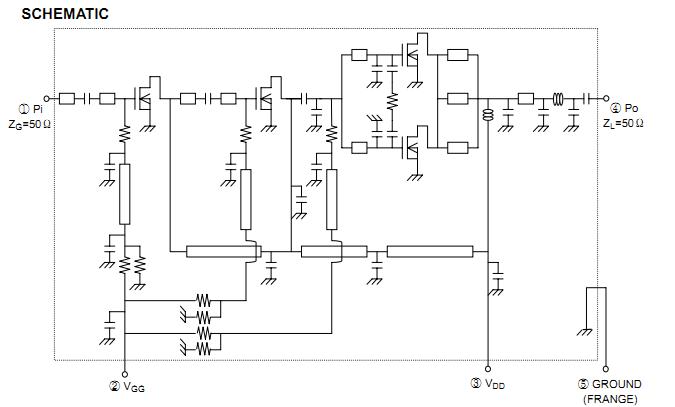

Diagrams
