Product Summary
The SKM200GB12T4 is an IGBT module. The typical applications of the SKM200GB12T4 include AC inverter drives, UPS, Electronic welders at fsw up to 20kHz.
Parametrics
SKM200GB12T4 absolute maximum ratings: (1)VCES: 1200V; (2)IC: 310A when TC=25℃; 160A wehn Tc=80℃; (3)ICRM: 600A; (4)VGES: ±20V; (5)Tvj: -40 to 175℃; (6)Tstg: -40 to 125℃; (7)Visol: 4000V; (8)inverse diode, IF: 230A when Tc=25℃; 175A when Tc=80℃; IFRM: 600A; IFSM: 1100A.
Features
SKM200GB12T4 features: (1)IGBT4=4 Generation IGBT; (2)VCEsat with positive temperature coefficient; (3)high short circuit capability, self limiting to 6*Icnom; (5)soft switching 4 generation CAL diode.

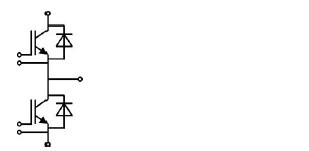

Diagrams
 |
