Product Summary

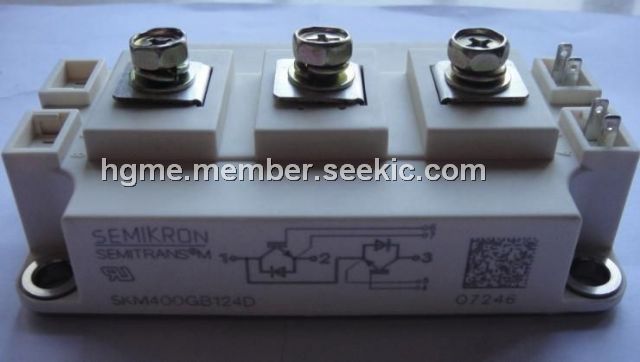

The SKM400GB124D is a Low Loss IGBT Module.Typical Applications of the SKM400GB124D are Switching (not for lineal use), Inverter drives, UPS.


Parametrics

SKM400GB124D absolute maximum ratings: (1)VCES: 1200 V; (2)IC TC= 25 (80)℃: 570 (400)A; (3)ICRM TP=1 MS: 600A; (4)VGES: ±20V; (5)TVJ: -40 TO + 150 (125) ℃; (6)VISOL: 2500V.

Features

SKM400GB124D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si-structure (NPT- Non punch-through IGBT); (3)Low inductance case . Very low tail current with low temperature dependence . High short circuit capability, self limiting to 6 x lCN0M . Latch-up free; (4)Fast & soft inverse CAL Diodes . Isolated copper baseplate using DCB Direct Copper Bonding Technology without hard mould . Large clearance (12 mm) and creepage distance (20 mm).

Diagrams

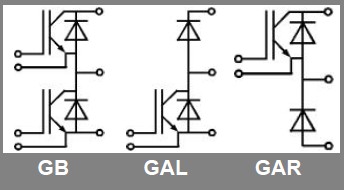

SKM400GB124D pin connection
