Product Summary

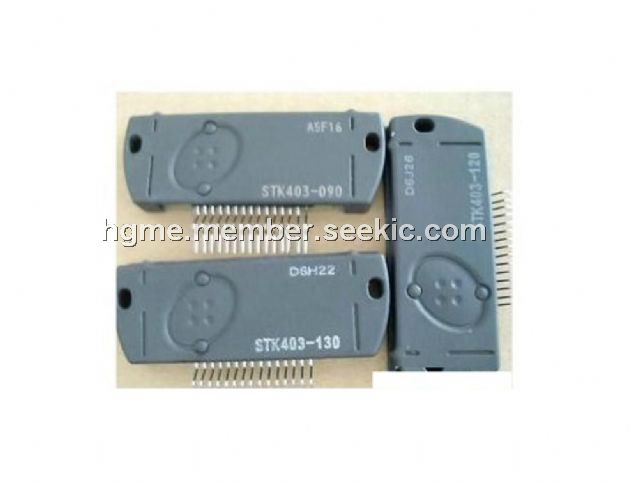

The STK403-130 is a 2 channels AF power amplifier. The application of it is 100W audio use.
Parametrics
STK403-130 absolute maximum ratings: (1)maximum power supply voltage 0:±71.5V; (2)maximum power supply voltage:±63V; (3)minimum operation supply voltage:±10V; (4)maximum operating current:0.6mA; (5)thermal resistance:1.7℃/W; (6)junction temperature:150℃; (7)operating substate temperature:125℃; (8)storage temperature:-30 to +125℃.
Features
STK403-130 features: (1)output power: 96W to 100W; (2)frequency characteristics: 20Hz to 50KHz; (3)input impedance:55kohm; (4)output noise voltage:1.0mVrms; (5)quiescent current:20mA to 80mA.
Diagrams
![]() |
