Product Summary

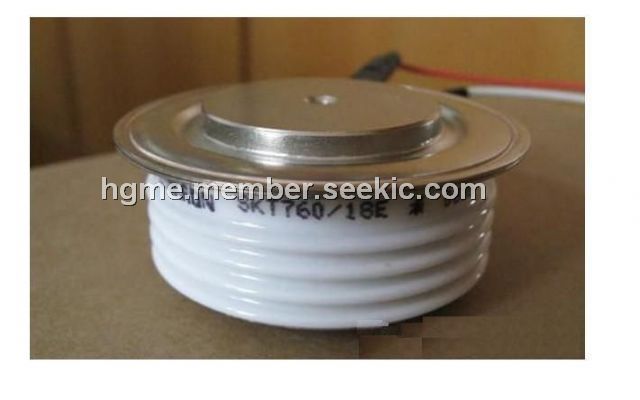

The SKT760/18E is a line thyristor. Applications include: (1)DC motor control(e.g. for machine tools); (2)Controlled rectifiers(e.g. for battery charging); (3)AC controllers(e.g. for temperature control); (4)Recommended snubber network e.g. for VVRMS≤400V: R=33Ω/32W, C=1μF.
Parametrics
SKT760/18E specifications: (1)On the conditions of sin180; Tc=100(85)℃, ITAV: 437(620)A; (2)On the conditions of 2 × P8/180; Ta=45℃; B2/B6, ID: 400/560A; On the conditions of 2 × P8/180; Ta=35℃; B2/B6, ID: 1060/1500A; (3)On the conditions of 2 × P8/180; Ta=45℃; W1C, IRMS: 440A; (4)On the conditions of Tvj=25℃; 10ms, ITSM: 11500A; On the conditions of Tvj=125℃; 10ms, ITSM: 10000A; (5)On the conditions of Tvj=25℃; IT=2400A, VT: max.2 V; (6)On the conditions of Tvj=125℃; VT(TO): max.1 V.
Features
SKT760/18E features: (1)Hermetic metal cases with ceramic insulators; (2)Capsule packages for double sided cooling; (3)Shallow design with single sided cooling; (4)International standard cases; (5)Off-state and reverse voltages up to 1800 V.
