Product Summary

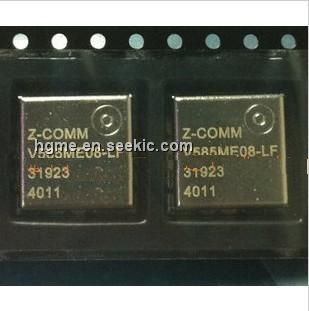

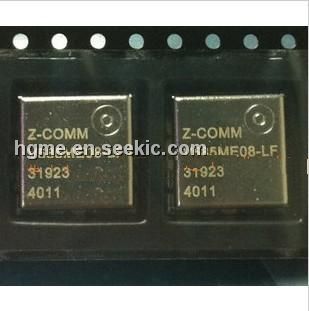

The V585ME08-LF is a voltage controlled oscillator. The applications of the V585ME08-LF include Satellite Communications, Test Instrumentation, Earthstations.
Parametrics
V585ME08-LF absolute maximum ratings: (1)Oscillation Frequency Range: 950-1900MHz; (2)Phase Noise @ 10 kHz offset (1 Hz BW, typ.): -100dbc/Hz; (3)Harmonic Suppression (2nd, typ.): -8dBc; (4)Tuning Voltage: 0 to 12V; (5)Tuning Sensitivity (avg.): 91MHz/V; (6)Power Output: 5.5±2.5dBm; (7)Load Impedance: 50Ω; (8)Input Capacitance (max.): 150pF; (9)Pushing: ＜3MHz/V; (10)Pulling ( 14dB Return Loss, Any Phase): ＜11MHz; (11)Operating Temperature Range: -30 to 80℃.
Features
V585ME08-LF features: (1)Frequency Range: 900 to 1900MHz; (2)Tuning Voltage: 0 to 12 Vdc; (3)MINI-14S - Style Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 V585ME08-LF |
Other |
|
Data Sheet |
Negotiable |
|
||||
