Product Summary

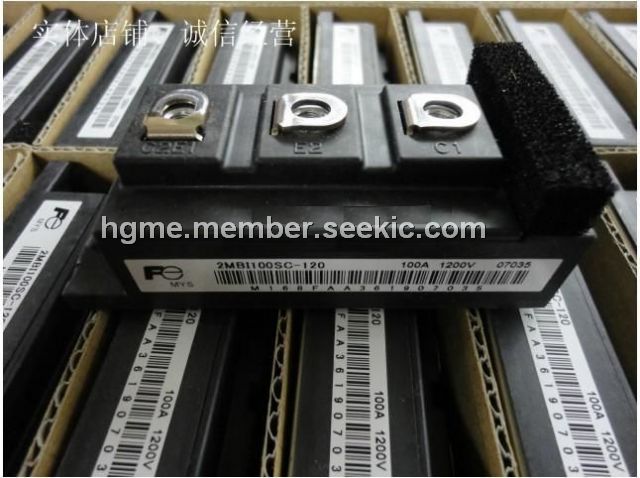

The 2MBI100SC-120 is an IGBT module. The applications of the 2MBI100SC-120 are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI100SC-120 absolute maximum ratings: (1)Collector-Emitter Voltage:1200 V; (2)Gate -Emitter Voltage:± 20 V; (3)Collector current:IC:150A, ICP:300A, -IC:100A, -ICP:200A; (4)Max. Power Dissipation:780 W; (5)Operating Temperature:+150℃; (6)Storage Temperature:-40 to +125℃; (7)Isolation Voltage A.C. 1min.:2500 V.
Features
2MBI100SC-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

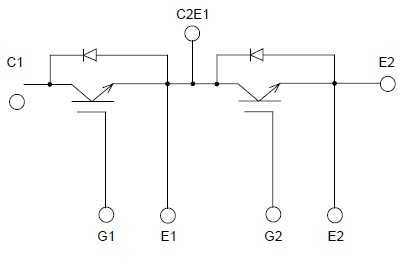

Diagrams
 |
