Product Summary

The 2SC2625 is a power transistor. The 2SC2625 is designed for use in high-voltage,high-speed,power switching in inductive circuit, and switchmode applications such as switching regulators,converters.



Parametrics

2SC2625 absolute maximum ratings: (1)Collector-Emitter Voltage VCEO: 400 V; (2)Collector-Base Voltage VCBO: 450 V; (3)Emitter-Base Voltage VEBO: 7.0 V; (4)Collector Current - Continuous -Peak C 10 A; CM 20 A; (5)Base current B: 3.0 A; (6)Total Power Dissipation @TC= 25℃ Derate above 25℃ PD: 80 W; 0.64 W/℃; (7)Operating and Storage Junction Temperature Range sTG: -55 to+150 ℃.

Features

2SC2625 features: (1)Collector-Emitter Sustaining Voltage: CEO(SUS) = (Min); (2)Collector-Emitter Saturation Voltage: vCE(sat) = 1 2 v (Max ) @ c = 4 0 A- b = -8A; (3)Switching Time -1 = 1.0 us (Max.) @ lc =5.0 A.

Diagrams

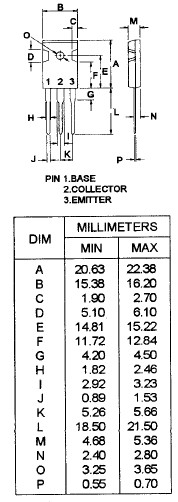

2SC2625 dimension
